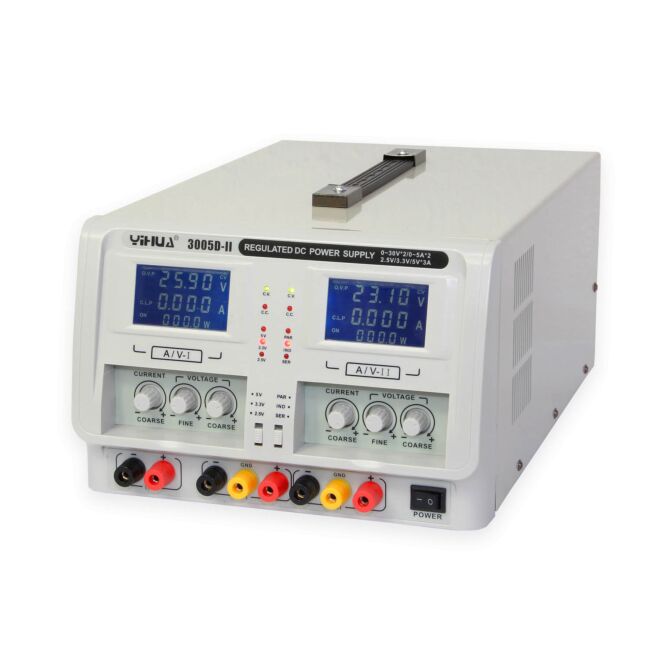

YIHUA 3005D-II DC 60V5A/30V10A

355,00 US$

Esta fuente tiene 3 fuentes de poder, son 2 de 30V5A que pueden usarse en paralelo para sacar 30V10A o en serie para sacar 60V5A
Y la tercera se puede elejir entre 2.5V, 3.3V y 5V a 3A

Disponibilidad:

Disponible

SKU

YH3005Dii

Details

Esta fuente tiene 3 fuentes de poder, son 2 de 30V5A que pueden usarse en paralelo para alimentar 30V10A o en serie para alimentar 60V5A
Y la tercera se puede elejir entre 2.5V, 3.3V y 5V a 3A

Se la ve muy sólida, recomendada. Yihua no nos ha defraudado hasta ahora.

1.The 3005D-II power supply is a dual-channel DC power supply with continuously-adjustable
current and voltage, a large-screen LED-backlit display, and built-in knobs to help operators
eliminate hidden dangers resulting from faulty adjustment. Channel II independent operations
feature automatic tracking in series or in parallel. The third fixed output features selection
between 2.5V, 3.3V, and 5V. Stunning in appearance and outstanding in performance, the
machine is suitable for technology product development and use in laboratories,teaching,
and electronics production lines as well as in essential communications industry equipment.
2. Independent Operations Mode ,it means the machine have 2 groups 30V 5A
output voltage and current.
3. Series Tracking Mode,it means the machine max output voltage is 60V ,the max
output current is 5A.
4. Parallel Tracking Mode ,it means the max output voltage value is 30V,the output
current is 10A.
5. The device has Fixed output,"SER" mode ,can set fixed output,(the voltage fixed
output value is 2.5V,3.3V,5V)
6. It features 3 positive and negative output voltage and current values. The 3 outputs can
work simultaneously.
7. 4digit display for accurate displaying of current values,precise to mA value,the
machine is built with SMT manufacturing and the latest technology.
8.The amchine inside transformer is copper,and inside have fan ,when the machine work temperaute over 45 degree,the fan will be work,it is good for heating radiation,can prolong
the machine life.

Parameters

I,II Channel II Independent Mode

Output Voltage	Continuously adjustable between 0-30V
Output Current	Continuously adjustable between 0-5A
Power Effect	CV≤0.01%+1mV CC≤0.2%+1mA
Load Effect	CV≤0.01%+5mV (I≤3A) CC≤0.2%+5mA (I≤3A) CV≤0.01%+7mV (I>3A) CC≤0.2%+10mA (I>3A)
Ripple Noise (5Hz-1MHz)	CV≤0.5mVrms (I≤3A) CC≤3mArms (I≤3A) CV≤1mVrms (I>3A) CC≤5mArms (I>3A)
Voltage Accuracy	±0.5%rdg+2 characters
Current Accuracy	±0.5%rdg+2 characters
Display Resolution	±0.5%rdg+2 characters

Channel III Output Characteristics

Rated Output Voltage	2.5V/3.3V/5V±0.1
Rated Output Current	3A
Power Effect	≤1mV
Load Effect	≤10mV
Ripple Noise (5Hz-1MHz)	≤1mVrms

Tracking Characteristics
Characteristics Operating in Series

Power Effect	≤1mV
Load Effect	≤30mV
Ripple Noise (5Hz-1MHz)	≤1mVrms

Characteristics Operating in Parallel

Power Effect	≤1mV
Load Effect	≤20mV
Ripple Noise (5Hz-1MHz)	CV≤0.5mVrms (I≤6A) CV≤1mVrms (I>6A)

Safety Requirements

High-Pressure Test	Leakage current ≤1mA (Test condition: input to ground of 1700VAC/2S)
Insulation Test	Insulation resistance ≥100MΩ (Test condition: input to ground of 500VDC/5S)

Rated Operating Conditions and Dimensions

Supply Voltage	220V±10% 50Hz (110V±10% 60Hz if required)
Operating Conditions	Temperature 0ºC~40ºC Relative humidity <80%
Storage Conditions	Temperature -20ºC~80ºC Relative humidity <80%
Operating Method	CV/CC
Protection Methods	Current-limiting buck, short circuit protection, overheating protection
Cooling Method	Cool air
Dimensions	L370×W250×H160mm
Rated Output Power	315W
