Para celulares/tablets no se necesita más.
Este equipo es años luz mejor que esos que ven en mercadolibre que son con luz visible. Este calentador es de aire muy controlado, no dejes que el precio te engañe, este equipo es muy poderoso.
Yo creo que para la mayoria de laptops actuales con un operador con buena mano (y los insumos correctos) se tendrian resultados aceptables. (con aceptables me refiero a IPC-A-610 e IPC-J-STD-001 aceptables). Talvez habria ingeniarselas un poco para agrandar el soporte y alargar el precalentado unos 5 minutos mas que con una maquina profesional.
Muy aceptable la maquinita para empezar a hacer plata reemplazando los IC de carga y memorias de celulares y reballing/reflow a laptops.
Recomiendo la 5850 como la maquina profesional economica y versatil de entrada. Pero esta no esta nada mal.
-Bruno

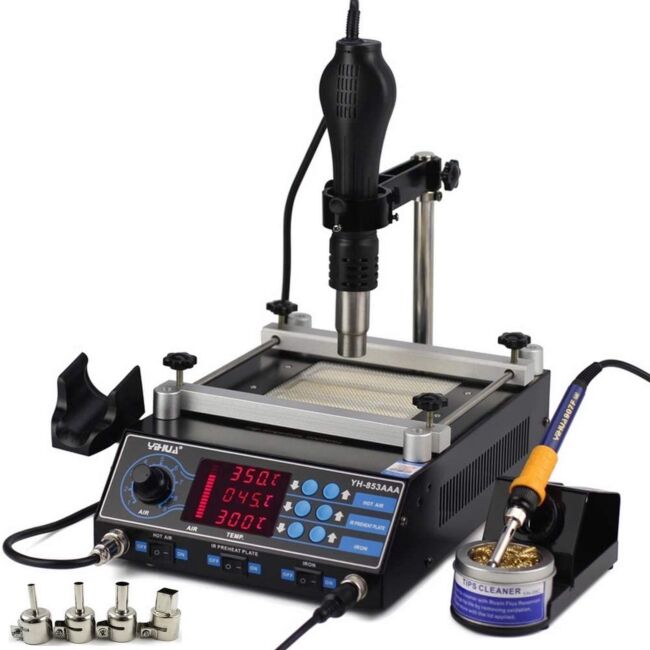

1.The machine is the Company’s innovative design based on meeting current market demand,
designed with the latest chip technology resulting in a simple BGA desoldering station that
integrates a preheat station and hot air gun into one package.
2. Yihua 853AAA also adds soldering station three functions in 1 , occupy less work surfaces,
practical and energy-saving, powerful, a conventional machine can basically meet all applications!
3. Temperature controls utilize core technology, adopting microprocessor-PID
programming for high-speed 100ms real-time tracking of air gun outlet temperatures and
soldering iron tip temperatures, with real-time calibration! Outlet temperatures are extremely stable.
4. With PID high-speed 100ms rapid temperature calibration, conversions are energy-efficient for constant temperature power consumption much lower than comparable machines,
equating to greater energy savings!
5. YIHUA853AAAsoldering iron handle wire employs a high-temperature silicone wire
(undamaged when 300o soldering tip contacts silicone wire for 30 seconds);
the heating element employs an imported high-power heating element for fast temperature compensation,
particularly suitable for desoldering crude terminals, large joints, and difficult to reach spots,
not to mention general solder joint desoldering.
6.The air gun/soldering iron features -50℃ to +50℃ temperature compensation
7.The air gun/soldering iron features ℉/℃ conversion
8.Pioneering with handle safety protection, an industry first, a docked handle in
the handle holder is required each time prior to machine operation.If not (placed)
in the handle holder, the operator will not be able to detect compliance with safety
instructions and the machine will not work. The purpose of such a function is to prevent
handle misplacement or accidental placement in unsafe or flammable (work) locations that could
lead to undesirable consequences.
Machine Parameters
Machine Parameters |
||||
Rated Voltage |
AC 220V±10% 50Hz |
|||
Total Power |
≤1000W |
|||
300℃ Constant Temperature Powe (High-Speed PID Programmed to Energy Savings) |
250W±10% |
|||
Operating Environment |
0~40℃ Relative Humidity<80% |
|||
Storage Temperature |
-20~80℃ Relative Humidity<80% |
|||
Dimensions |
|
|||
Weight |
5.54kg |
|||
Performance Parameter |
Hot Air Gun |
853AAA Soldering Iron |
||
Operating Voltage |
AC 220V±10% 50Hz |
AC 26V±10% 50Hz |
||
Output Power |
650W |
75W |
||
Temperature Range |
100℃~480℃ |
200℃~480℃ |
||
Air Supply Mode |
Brushless-Motor Fan |
--- |
||
Airflow |
120L/min |
--- |
||
Temperature Stability |
±1℃ (Static) |
±1℃ (Static) |
||
Display Mode |
Red LED Digital Display |
Red LED Digital Display |
||
Calibration Mode |
PID Digitally Programmed Calibration |
IPID Digitally Programmed Calibration |
||
PID Temperature Calibration Cycle |
Rapid 20ms |
High-Speed 100ms |
||
Heating Core |
Ceramic Framed Heating Core |
Imported High-Powered Heating Core |
||
Tip-to-Ground Impedance |
--- |
<2Ω |
||
Tip-to-Ground Voltage |
--- |
<2mV |
||
Preheat Station |
||||
Operating Voltage |
AC 220V±10% 50Hz |
|||
Output Power |
600W |
|||
Heated Region Area |
130X130mm |
|||
Heated Region Material |
Ceramic Heating Element |
|||
Temperature Sensor |
K-type Thermocouple |
|||
Temperature Control Range |
50℃--350℃ |
Infrarrojo | 600W |
---|---|
Poder Total | 1000W |
Max PCB | 160mm*200mm |
Tobera Superior | 650W |
Dimensiones | - |
Tobera Inferior | - |
Peso+Empaque | 5.54 |
Voltaje~hz | 220V 50hz |
Productividad | 3 |
Extracción automática | - |
Alineación óptica | - |
Idiomas del Software | - |
Panel Táctil | - |
Garantía | 6 meses |
Incluye | Boquillas y puntas |
Ajuste vertical boquilla inferior | - |
