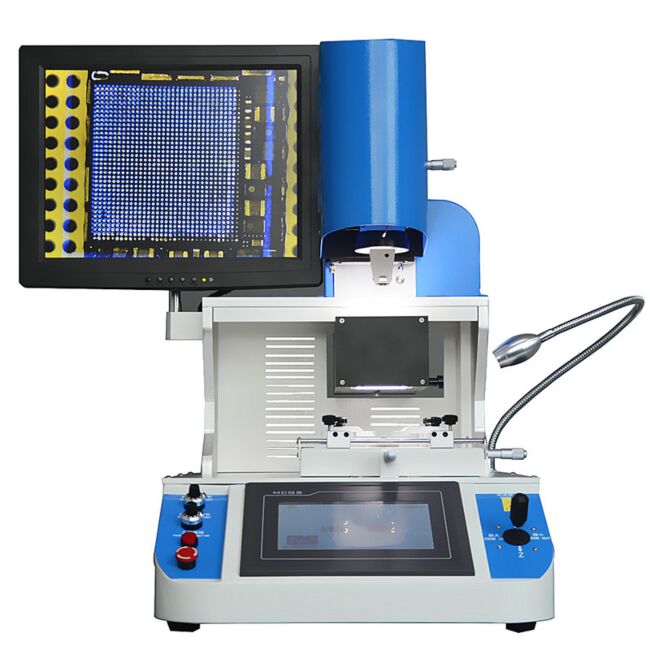

Maquina de Reballing WDS-700 Bajo Pedido

Deja tu opinión

Disponibilidad: En existencias

6.081,60 $
6.081,60 $

Descripción

Detalles







Product Description

Parameter of WDS-700 automatic mobile phone repair machine

 Place of Origin

 Guangdong , China

 Brand Name   Wisdomshow / WDS

 Moed Number

 WDS-700 iPhone chip remove machine
 Superior function  Soldering and desoldering BGA Chip/Mini IC

 More details Parameter of WDS-700 automatic mobile phone repair machine

1

Business type

BGA rework station factory

2

Power supply

AC 220V±10% 50/60Hz

3

Total power

Max 2500W

4

Heater power

Upper temp.zone 1200W,Down temp.zone 1200W

5

Electrical material

Driving motor+PLC smart temp.controller+color touch screen

6

Temperature controlling

(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃

7

Locating way

V shape slot,PCB support jigs can adjust

8

PCB size

Max 140×160mm Min 5×5 mm

9

Applicable chips

Max 80×80mm Min 1×1 mm

10

Overall dimension

L450×W470×H670mm

11

Temperature Interface

1 pcs

12

Weight of machine

30KG

13

Color

Blue+White

Full Specification of WDS-700 autoamtic mobile phone repair machine

***Independent 2 heating zones temperature control system

1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.automatic mobile phone repair machine

2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.iphone glued ic repair machine

***Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

***Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

***Superior safety protection function

With alarm function, after the BGA welding the machine can alarm by itself.
In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.automatic mobile phone repair machine



Info Adicional

Info Adicional

Precio 5.430,00 $
Poder Total 2500
Max PCB 140mm * 160mm
Dimensiones L450xW470xH670
Tobera Superior 1200W
Tobera Inferior 1200W
Peso+Empaque 30+15
Infrarrojo NO
Voltaje~hz AC 220V±10% 50/60Hz
Productividad X
Ajuste vertical boquilla inferior No
Extracción automática Si
Alineación óptica Si
Panel Táctil MCGS
Idiomas del Software Inglés
Incluye Máquina, boquillas, consumibles básicos
Garantía 1 año.
